27 International Business Park

Specifications

Accessibility
• 5 minutes’ drive from Ayer Rajah Expressway (AYE)
• 15 minutes’ drive to City and 30 minutes’ drive to Singapore Changi Airport via AYE
• Located near the Jurong East integrated Transport Hub that connects the NSL, EWL and future Jurong Region Line

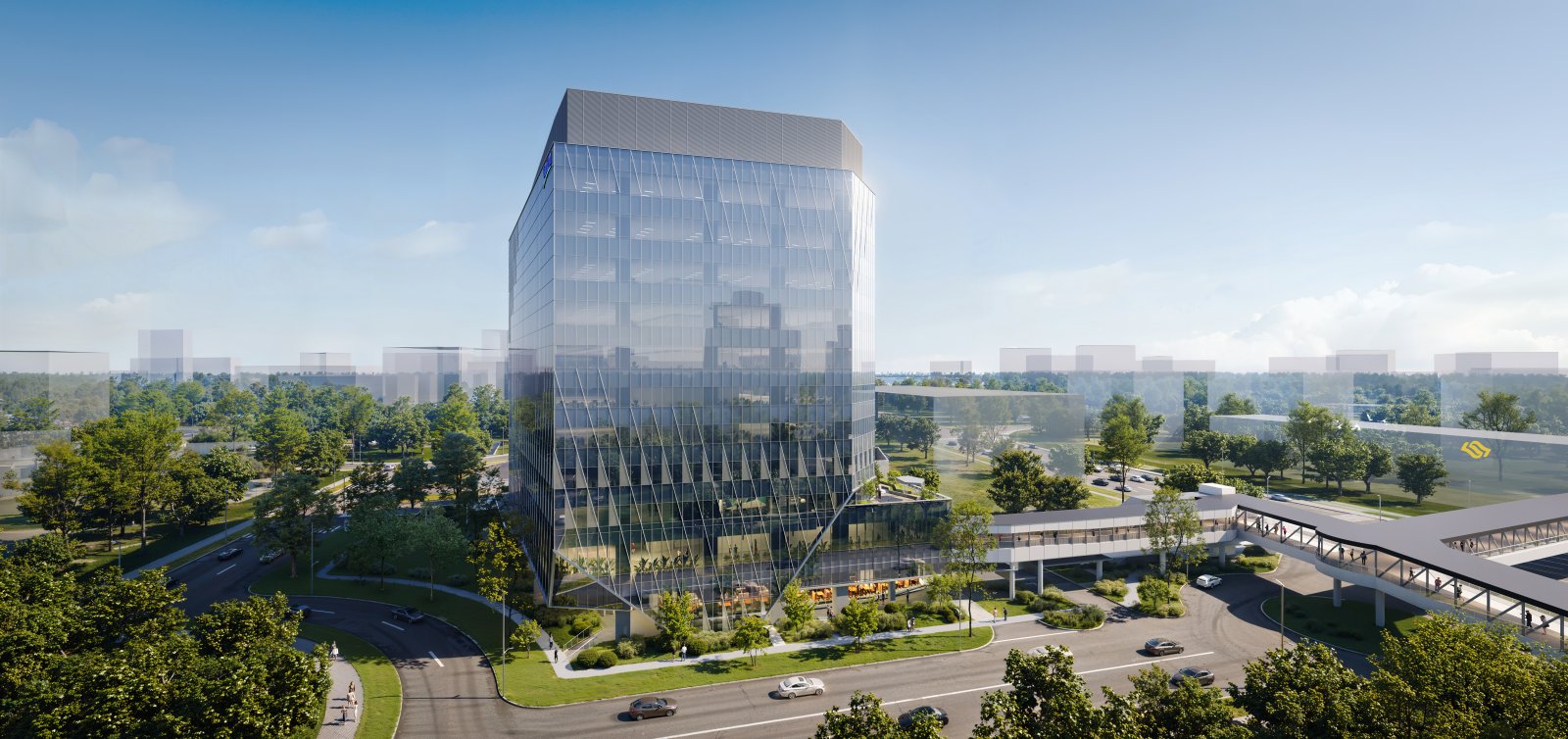

• Connected directly to the future Jurong Town Hall MRT station via an elevated sheltered pedestrian link bridge
• Shuttle bus to Jurong East MRT station and public bus stop next to the building

Building Specifications
Type of Building

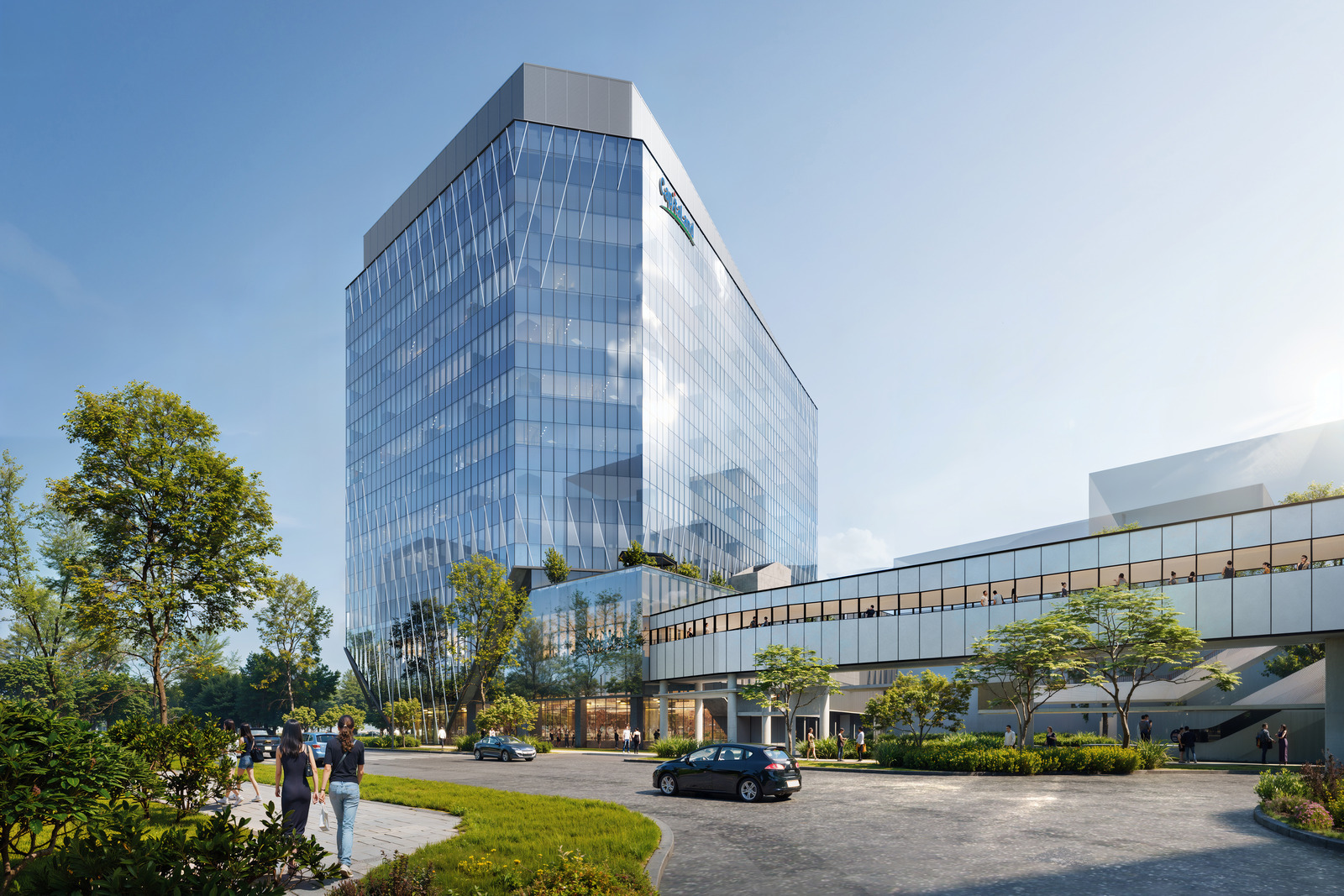

• 11-storey premium Business Park building with basement car park

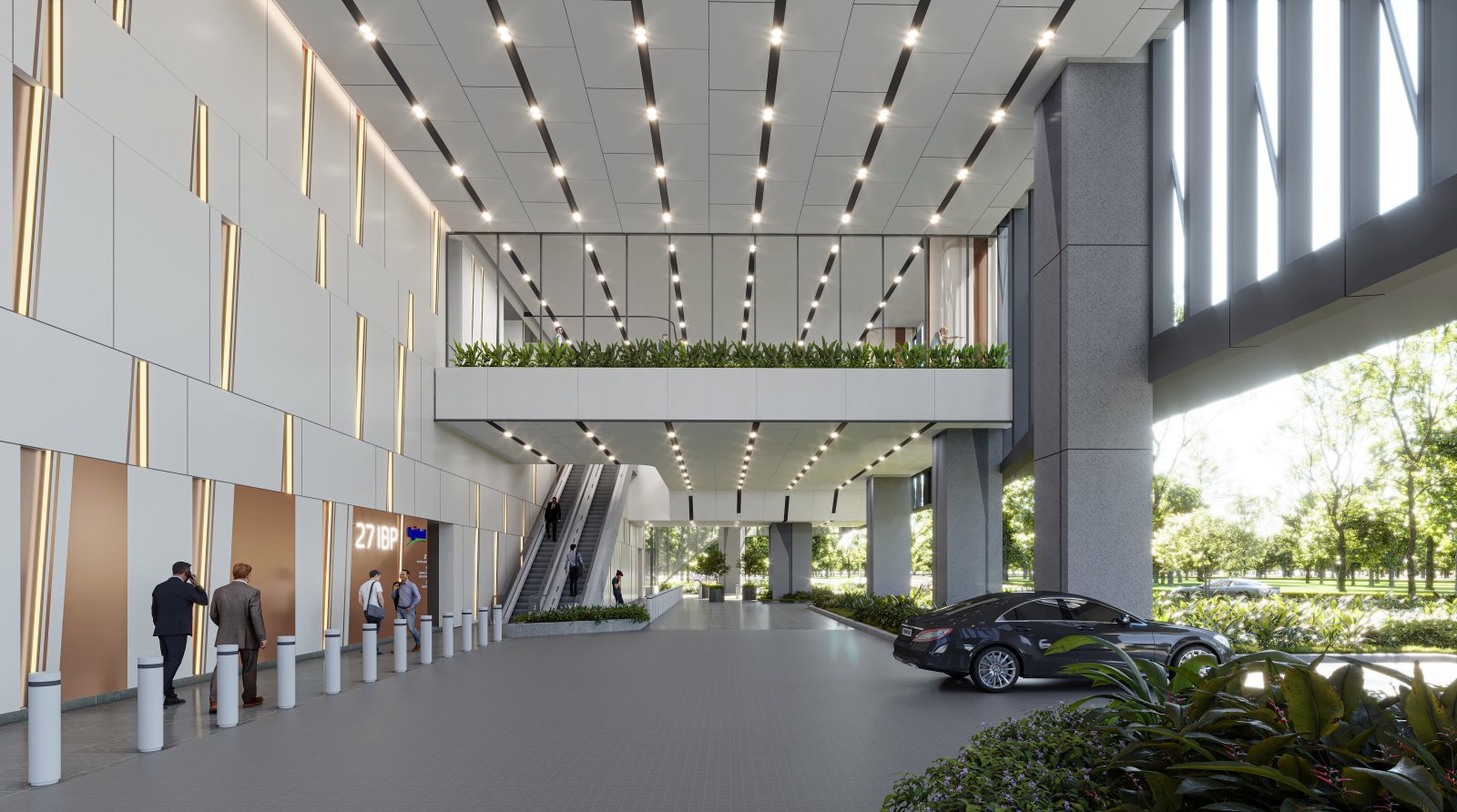

• Integrated with a grand and welcoming arrival with lush landscape on the 1st storey
• Elevated main lobby on level 2 which directly connects to a public pedestrian linkway to the future Jurong Town Hall MRT station
• Regular and column free layout for efficient workplace planning
• Green Mark Certification: BCA Platinum Award

Floor Area
• Total business park NLA: Approx. 20,000 sqm

Typical Floor Plate
• 1st storey (canteen): 580 sqm
• 2nd storey: 1,520 sqm
• 5th – 7th storey (IT): Approx. 2,580 sqm
• 8th storey (wet-lab ready): Approx 2,510 sqm
• 9th – 11th storey (wet-lab ready): Approx. 2,580 sqm

Floor Loading
• 1st – 7th storey (including canteen): 5 kN/sqm
• 8th – 11th storey: 7.5 kN/sqm

Ceiling Height
• Floor to Floor
- 1st storey canteen: 7.5m
- 2nd storey BP: 6.1 m
- 5th – 7th storey: 4.5 m
- 8th – 10th storey: 5.0 m
- 11th storey: 5.6 m

• Floor to False Ceiling
- 1st storey (canteen): 4.5 m max. ceiling height (ceiling by tenant)
- 2nd storey: 4.5 m
- 5th – 6th storey: 3 m (raised floor to false ceiling)
- 7th – 9th storey: 3.3 m (raised floor to false ceiling)
- 10th – 11th storey: No false ceiling provided

Column Grid
•1st – 11th storey: Approx. 10.2 m x 8.4 m

Lifts
• Passenger lifts
- 5 nos. x 1800kg (24 persons) serving from 2nd storey and 5th to 11th storey
- 1 no. x 1125 kg (15 persons) serving basement to 4th storey (Carpark Lift)

• Service/Fire lifts
- 1 nos. x 2700 kg (36 persons) serving from basement to 11th storey
- 1 nos. x 2700 kg (36 persons) serving from basement to Lower Roof
- Internal Car Dimension:2.1m (W) x 2.3m (D) x 3m (H)
- Lift Car Door Size: 2m (W) x 2.6m (H)

Loading Bay Facilities
• 2 lots at Level 1
• Designed to allow for 20-foot container trucks

Parking Lots
• Car: Approx. 56
• Parking lot allocation: 1 lot per 500 sqm leased

Air-conditioning System
• Air-con provided from Mon to Fri (8:00am – 6:00pm), except Public Holidays

Power Supply Allocation
• BP-IT (2nd, 5th to 7th storey): Approx. 85 watts per sqm of lettable area (3-Phase)
• BP – Wet Lab Ready (8th to 11th storey): Approx. 150 watts per sqm of lettable area (3-Phase)

Provisions
• BP-IT (2nd, 5th – 7th storey)
- Ceiling boards, light fittings, central air-conditioning and raised floors
• BP – Wet Lab Ready (8th to 11th storey):
- Light fittings, central air conditioning and raised floors
- Fresh air louvre provided at the designated lab tenant unit
- Lab exhaust shaft 1m x 1m provided at the central core for designated lab tenant unit

Amenities
•Canteen

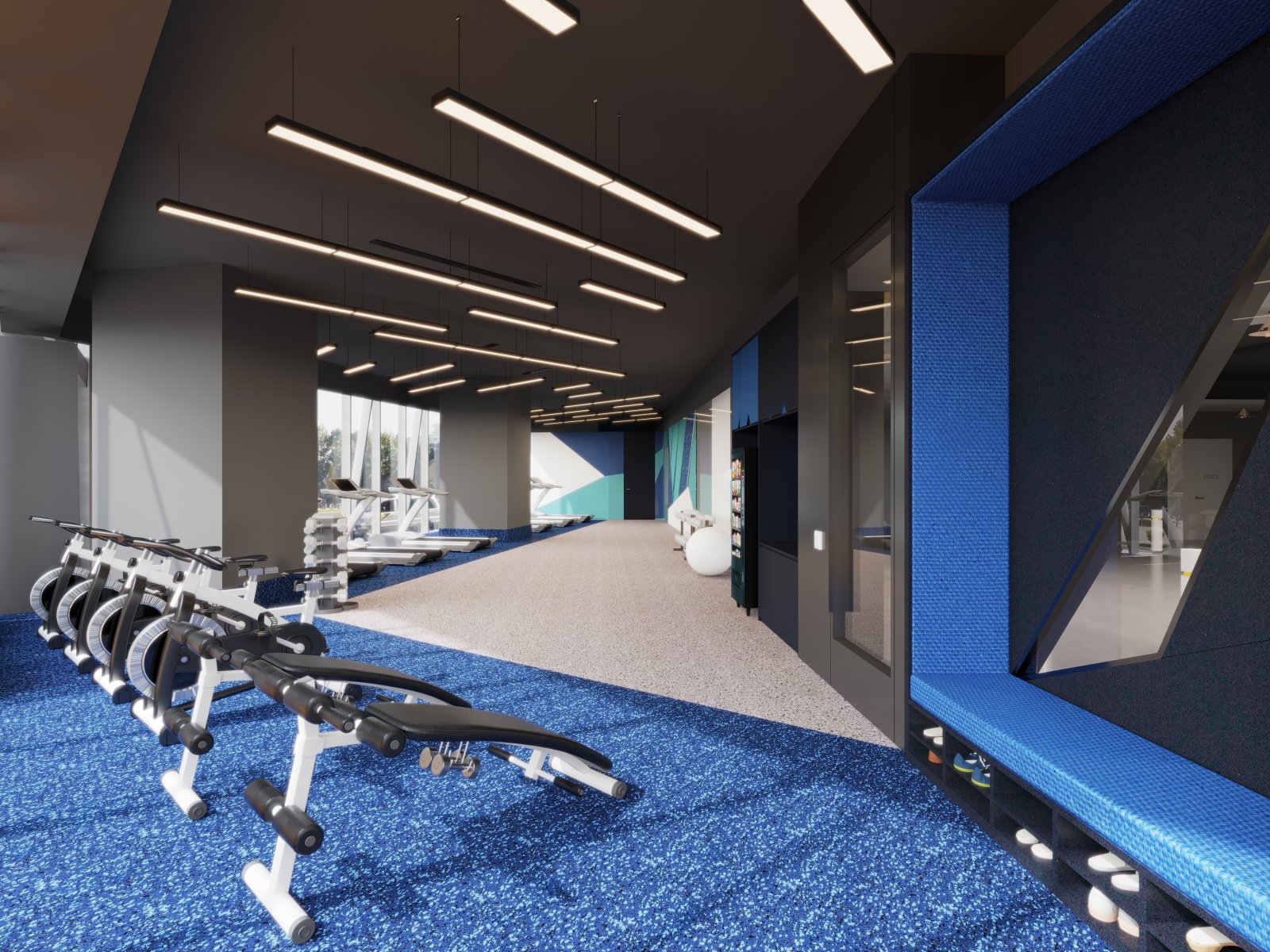

•Gym

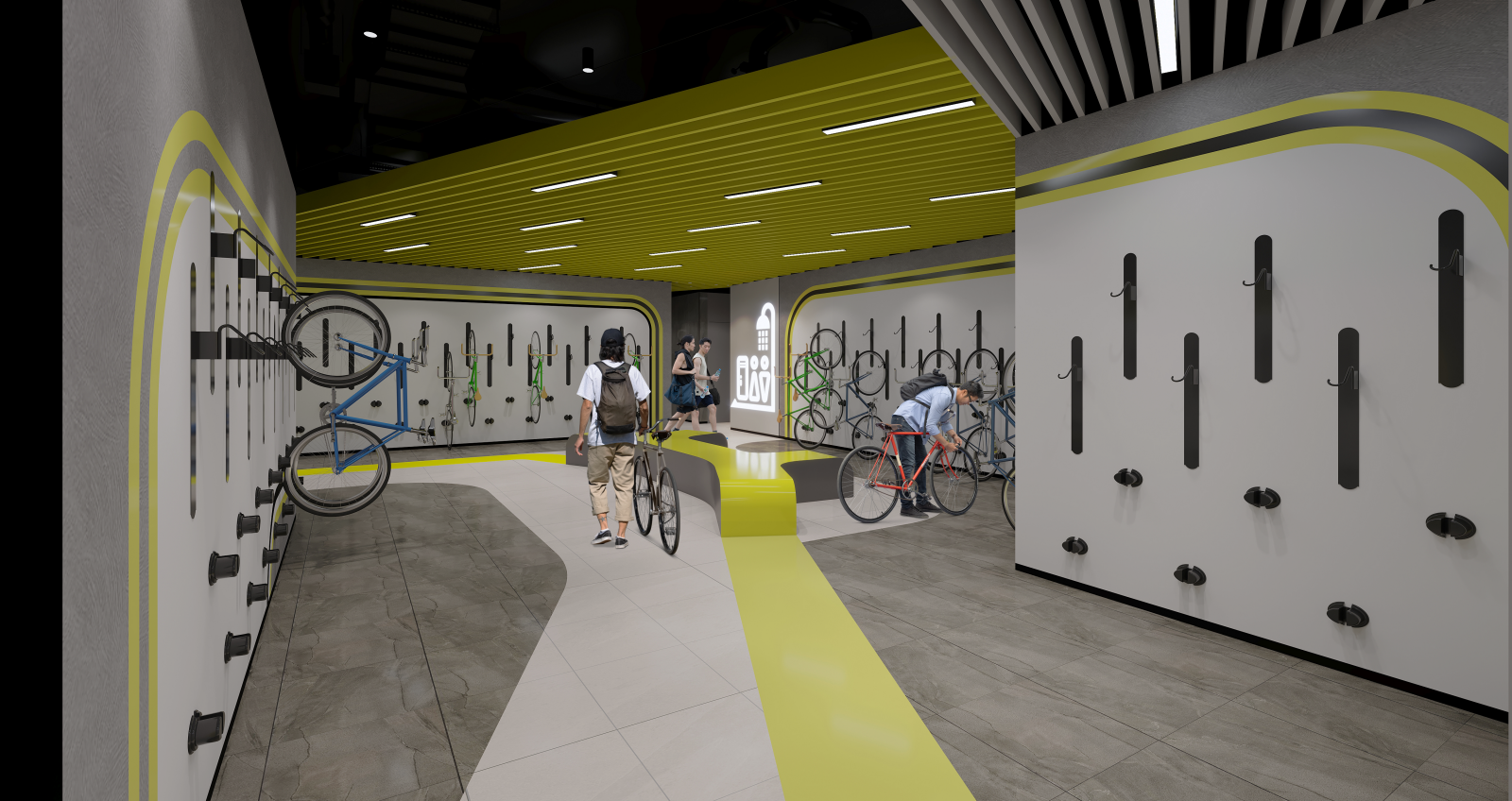

• End-of-trip facilities equipped with bicycle racks, lockers and changing rooms

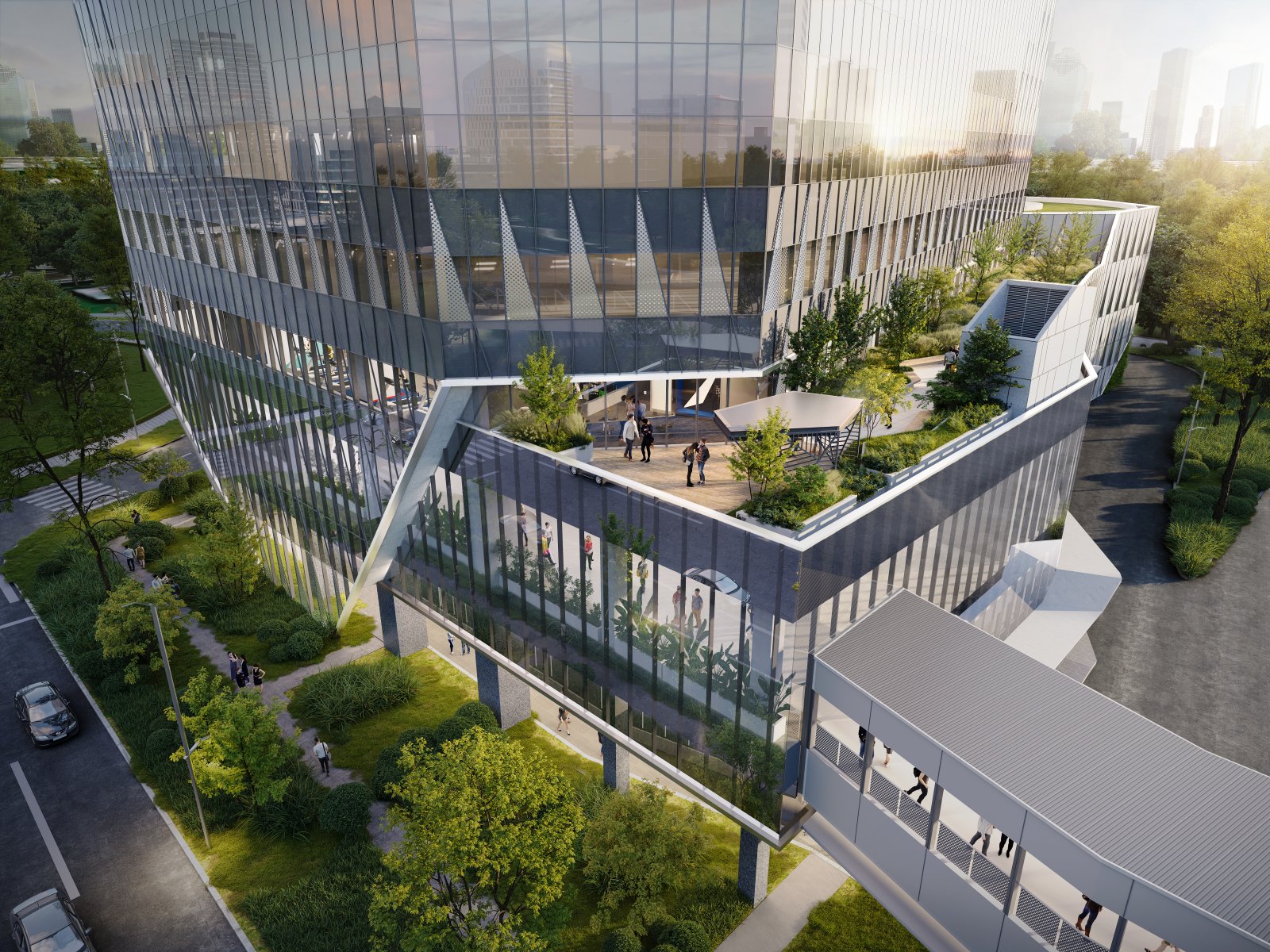

• Sky terrace with lush landscaping for users to engage in activities and interact.

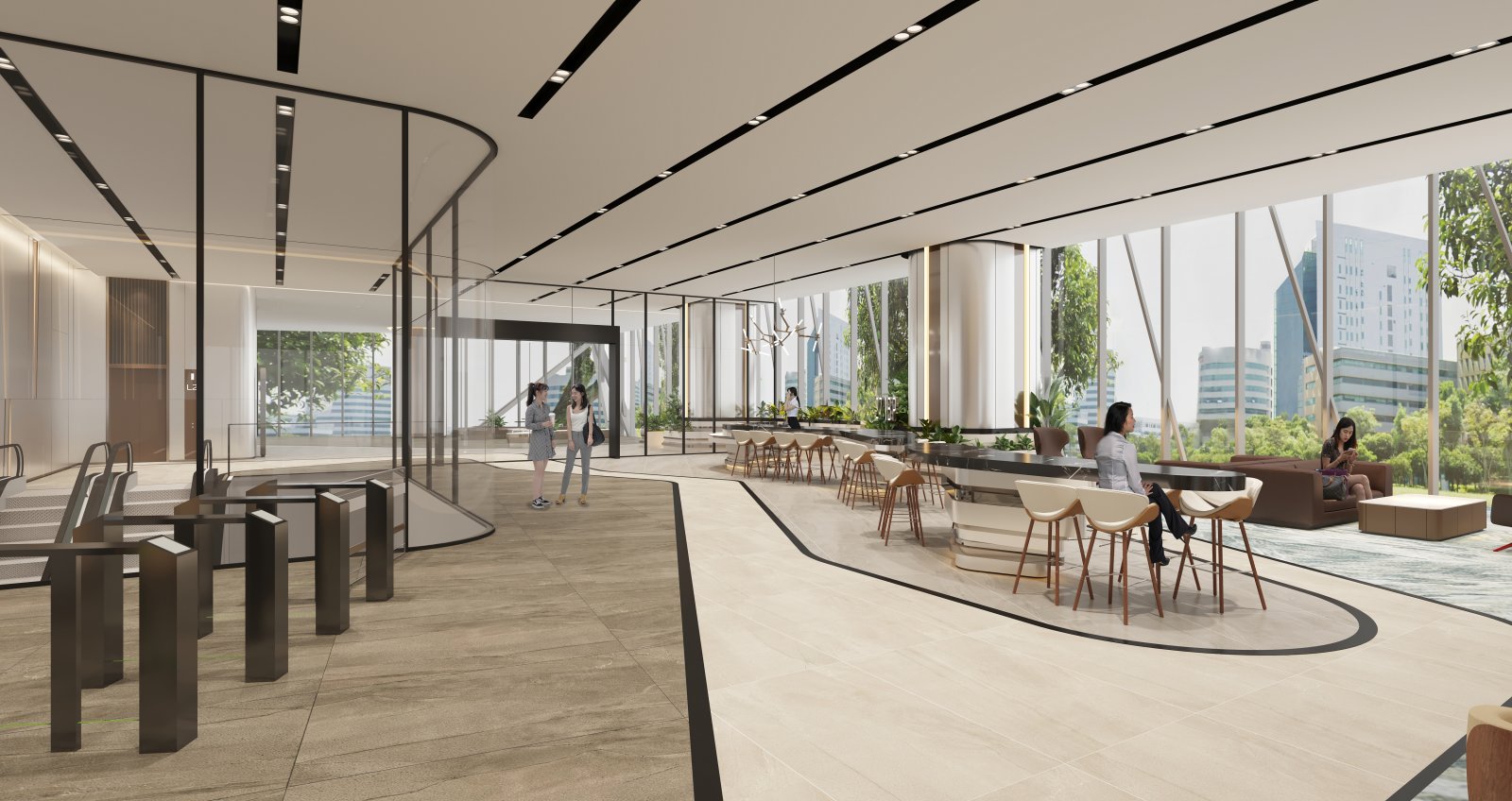

• User-centric technologies including facial recognition entry system at the lobby's turnstiles, touchless lift buttons and visitor management system
