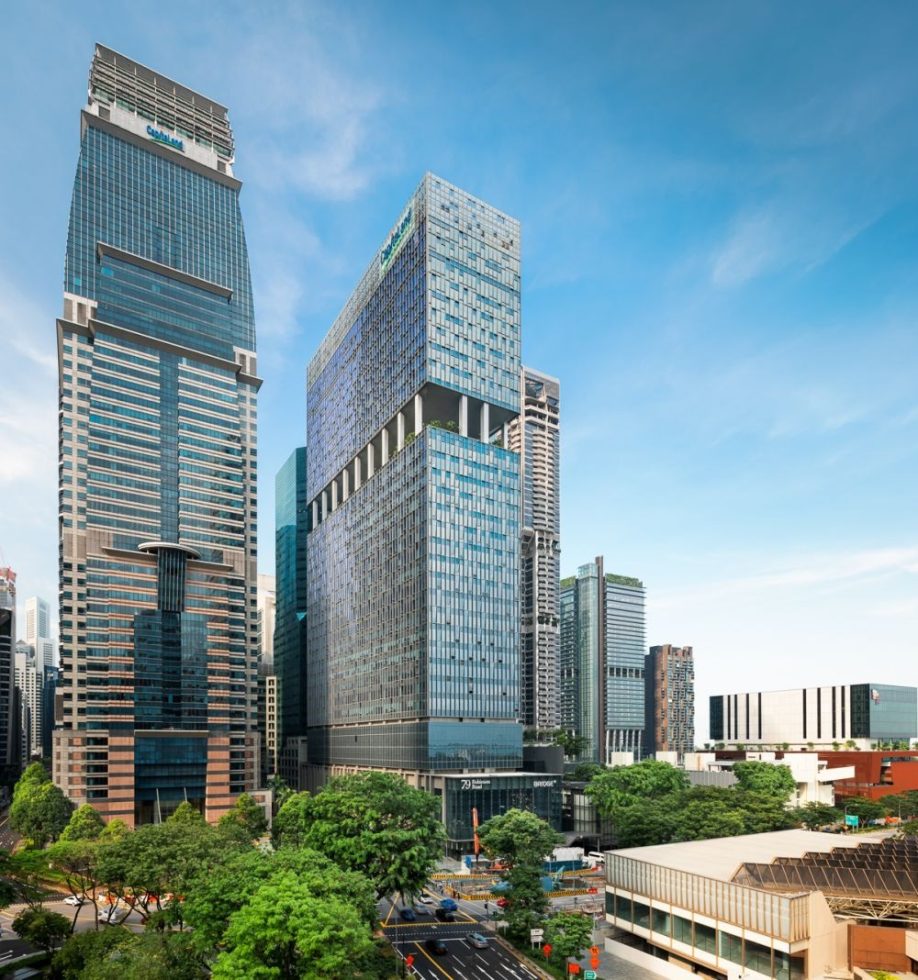

CapitaSky

Specifications

Total Net Lettable Area
518,600 sq ft

Typical Floor Areas
Low Zone (6th to 11th level) – approx. 23,900 sq ft
Mid Zone (13th to 20th level) – approx. 24,100 sq ft
High Zone (21st to 28th level) – approx. 24,500 sq ft

Total No. of Floors
29 Levels

Core Location
Centre core

Curtain Wall
Unitised Façade System

Floor Loading
1st Level Retail / F&B Units – 5.0 kN/sq m
Typical Office Floors – 4.0 + 1.0 kN/sq m (Tenant Partition Wall)

Floor To Floor Height
1st Level Plaza – 9 m
2nd Level Lobby – 15 m
Typical Office Floors – 4.55 m

Finished Floor To Finished Ceiling Height
1st Level Plaza – 6 m
2nd Level Lobby – 9 m
Typical Office Floors (from Raised Floor level) – 3 m
Typical Toilets and Service Areas – 2.8 m

Raised Access Floor Void
150 mm, including raised floor system

No. of Lifts and Capacity (Passenger)
Low Zone (6th to 11th Level) – 4 Passenger Lifts
Mid Zone (13th to 20th Level) – 6 Passenger Lifts
High Zone (21st Sky Terrace to 28th Level and Roof Garden) – 6 Passenger Lifts
Carparks (3rd to 5th Level) – 2 Carpark Lifts
Basement 2 to 1st Level – 1 Bicycle / Passenger Lift
Others – 2 Fire / Service Lifts

Air-Conditioning Systems
Low Zone – 1 AHU per floor
Mid & High Zone – 1 AHU per 2 floors
Centralised chilled water supply for Office
FCU to 1st Level Retail / F&B Units

Electrical Loading and Supply
Electrical (Lighting & Power) Loading Provisions:
Office Tenanted Space of Typical Office Floors - 100 W/m2 , Retail / F&B - 330W/m2
Two 22 kV incoming supply HT feeders
Contestable metering scheme to the whole development

Emergency Power Supply
Provision of approximately 20% of tenant normal load for office tenant’s emergency use (subject to availability)

Spare Risers
For tenants’ inter-floor cabling (subject to availability)

Lighting Illumination Density
Average of 500 lux for Office Area

Car Parking System
Electronic Parking System

Car Parking Lots
133 Carpark Lots and 3 Accessible Lots

Bicycle Lots
Basement 1 – 74 lots; Level 1 – 18 lots

Structural Openings
Inter-floor connectivity can be created within the structural steel decking
Locations of opening to be determined

Toilets
Male and Female
1 Executive Toilet per floor (with shower facilities)
1 Accessible Toilet per floor

Pantry
Common pantry on every Typical Office Floor
Provision of water and drainage points for connection by tenant (subject to availability)

Security
Turnstiles will be installed at every lift zone in Level 2 Main Lobby
CCTV, guard tour and card access system will be provided to all common areas
Destination group-control passenger lift system for Office Tower

Telecommunication Network
Digital Free-To-Air TV, Telephone Cablings and In-building Optical Fibre Infrastructure

Sound / Paging System
Public address system to code requirement

Fire Protection System
Sprinkler protected

Building Automation System
Centrally monitored building management system (BMS)
