Pacific Tech Centre

Specifications

ACCESSIBILITY
• Easily accessible to Ayer Rajah, Central Expressways and to Central Business District
• Proximity to Commonwealth, Redhill MRT stations and Bukit Merah Bus Interchange

BUILDING SPECIFICATIONS
Type of Building
• 10-storey high-specs industrial building with surface carpark & sheltered carpark at 2nd and 3rd storey
• BCA Green Mark Certified
• Green features: Motion-sensor lightings, toilets with water saving fittings, and recycling corner

Floor Area
• Total NLA: Approx. 19,627 sqm

Floor Loading
• 1st storey: 15.0 kN/sqm
• 2nd & 3rd storey: 10.0 kN/sqm
• 4th - 9th storey: 5.0 kN/sqm
• 10th storey: 5.0 kN/sqm, 2.5 kN/sqm at entrance and airwell

Ceiling Height
• Floor to floor
- 1st & 3rd storey: 6.0 m
- 2nd storey: 4.0 m
- 4th - 10th storey: 4.0 m
• Floor to false ceiling
- 1st & 3rd storey: 4.5 m
- 2nd storey: 2.7 m
- 4th - 10th storey: 2.7 m

Column Grid
• Approx. 8.4 m x 16.8 m

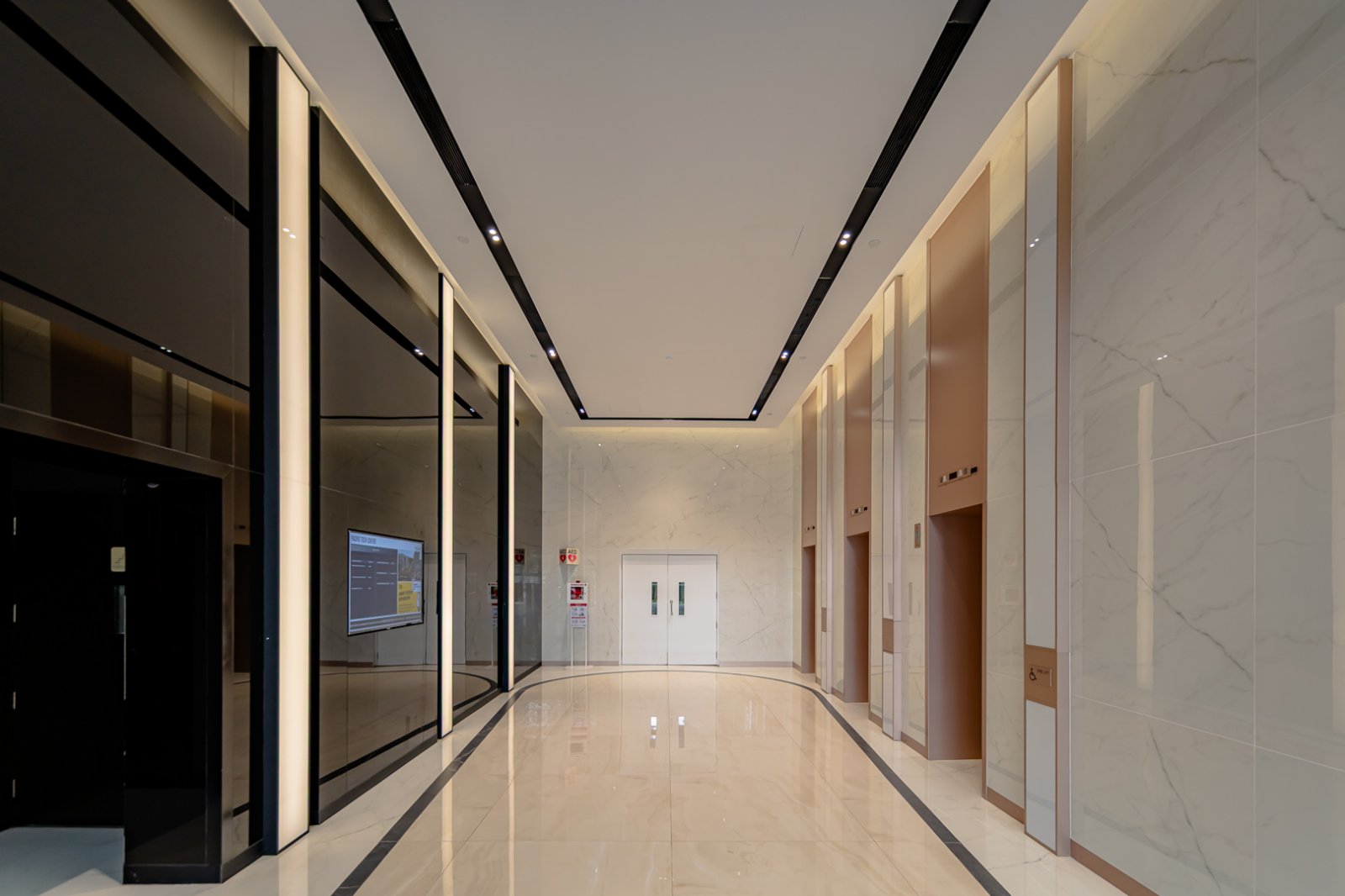

Lifts
• Passenger lifts: 3 x 1,000 kg (15 persons)
• Firemen lift: 1 x 1,000 kg (15 persons)
• Cargo lifts: 3 x 2,000 kg
- Dimension: 1.8 m (W) x 2.8 m (D) x 2.5 m (H)
- Lift car door size: 1.8 m (W) x 2.5 m (H)

Loading Bay Facilities
• 4 loading/unloading bays with dock levellers

Parking Lots
• Car: Approx. 166
• Motorcycle: Approx. 7
• Lorry: Approx. 4
• Parking lot allocation: 1 lot per 400 sqm leased

Air-conditioning system
• Ceiling cassette type and VRV spilt air-conditioning unit

Power Supply Allocation
• Approx. 175 watts or 0.3 amps per sqm of lettable area (3-Phase)

Provisions
• 24-hour security surveillance
• Closed circuit TV system
• Common wet pantry
• Fibre-optic to MDF room

Amenities
• Walking distance to food centre, shopping facilities, fastfood outlets, MRT, bus interchange, library and banking facilities
