Techplace II

Specifications

ACCESSIBILITY
• Strategically situated within 5 minutes’ drive from the CentralExpressway
• 10 minutes’ drive to city and 20 minutes’ drive to Singapore Changi Airport
• Within 5 minutes’ drive to Ang Mo Kio and Bishan MRT stations

BUILDING SPECIFICATIONS
Type of Building
• A cluster of light industrial buildings with multi-storey carpark atBlocks 5008 and 5014
• BCA Green Mark Certified
• Green features: EV charging stations, motion-sensor lightings,toilets with water saving fittings, bicycle rack and recycling corner

Floor Area
• Total NLA: Approx. 83,200 sqm

Floor Loading
Block 5000/5002/5004
• 1st storey: 15.0 kN/sqm
• 2nd storey: 12.5 kN/sqm
• 3rd – 5th storey: 7.5 kN/sqm

Block 5008
• 1st storey: 12.5 kN/sqm
- #01-05/06: 7.5 kN/sqm
- #01-05/06 (Meszzanine): 3.5 kN/sqm
• 2nd storey (Canteen): 5.0 kN/sqm
• 4th – 8th storey: 7.5 kN/sqm

Block 5012
• 1st storey: 15.0 kN/sqm
• 2nd & 3rd storey: 12.5 kN/sqm
• 4th – 5th storey: 10.0 kN/sqm

Block 5014
• 1st storey: 12.5 kN/sqm
• 4th – 7th storey: 10.0 kN/sqm

Column Grid
Block 5000/5002/5004/5012
• Approx: 5.0 m x 6.4 m

Block 5008
• Approx. 8.1 m/12.0 m x 10.5 m/12.0 m

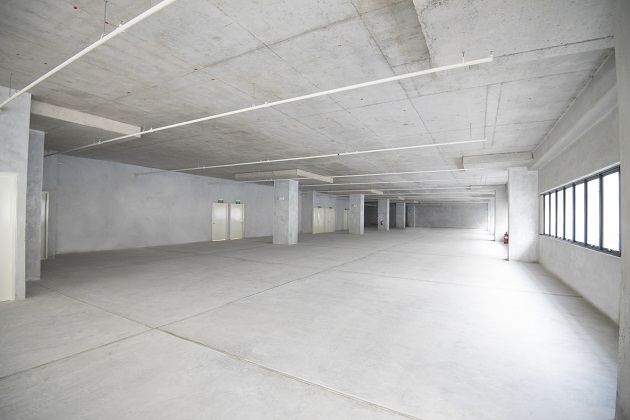

Ceiling Height
Floor to slab soffit
• Block 5000/5002/5004/5012
- 1st storey: 3.8 m – 4.2 m
- 2nd – 5th storey: 3.2 m
• Block 5008
- 1st storey: 4.9 m
- 4th - 8th storey: 3.6 m - 3.8 m
• Block 5014
- 1st storey: 2.8 m – 3.75 m
- 4th – 7th storey: 3.1 m

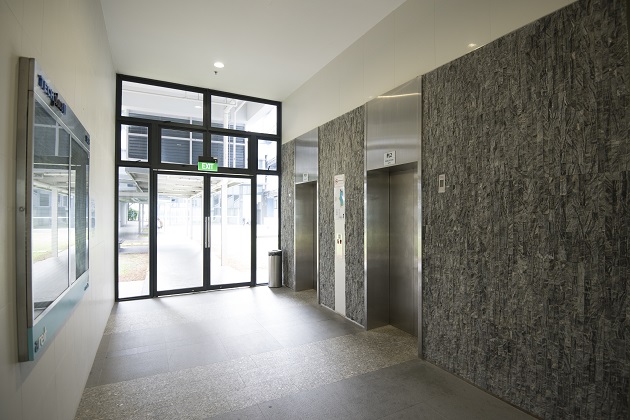

Passenger Lifts
• Block 5000/5002/5004: 1 x 1,250 kg (18 Persons)
• Block 5008: 2 x 1,020 kg (15 Persons)
• Block 5012: 2 x 1,360 kg (20 Persons)
• Block 5014: 1 x 3,015 kg (44 Persons)

Cargo Lifts
• Block 5000/5002/5004: 2 x 3,000 kg
- Dimension: 2.0 m (W) x 2.5 m (D) x 2.1 m (H)
- Lift car door size : 1.1 m (W) x 2.1 m (H)
• Block 5008: 4 x 3,000 kg
- Dimension: 2.25 m (W) x 2.5 m (D) x 2.4 m (H)
- Lift car door size : 2.0 m (W) x 2.4 m (H)
• Block 5012: 4 x 2,500 kg (2 at each Wing)
- Dimension: 2.3 m (W) x 2.0 m (D) x 2.3 m (H)
- Lift car door size : 1.1 m (W) x 2.1 m (H)
• Block 5014: 1 x 3,000 kg
- Dimension: 2.3 m (W) x 3.5 m (D) x 2.5 m (H)
- Lift car door size : 1.1 m (W) x 2.1 m (H)

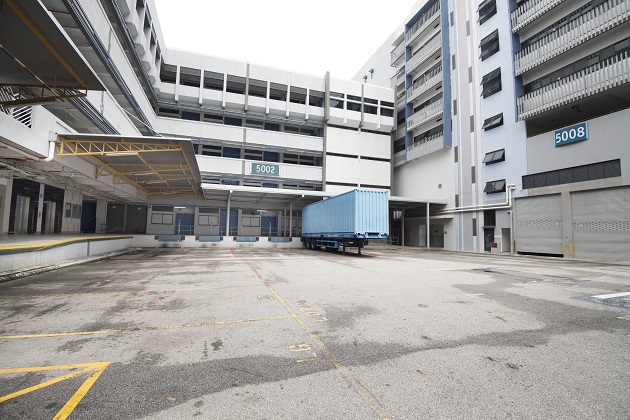

Loading Bay Facilities
• Block 5000: 4 loading/unloading bays with 3 dock levellers
• Block 5002/5004: 5 loading/unloading bays with 5 dock levellers at each block
• Block 5008: 10 loading/unloading bays with 10 dock levellers (Co-sharing with Block 5002 and 5004)
• Block 5012: 6 loading/unloading bays with 6 dock levellers (2 at each Wing)
• Block 5014: 2 loading/unloading bays with 2 dock levellers (Co-sharing with Block 5012)

Parking Lots
• Block 5000/5002/5004/5012: Approx. 386 (open surface)
• Block 5008: Approx. 161 (multi-storey)
• Block 5014: Approx. 95 (multi-storey)
• Parking lot allocation: 1 lot per 200 sqm leased

Power Supply Allocation
• Block 5000/5002/5004/5012/5014
- Approx. 0.32 amps – 0.52 amps per sqm of lettable area
- Tenant is to fix own distribution board (DB) and run cable from switch room to unit
• Block 5008
- Approx. 150 watts per sqm of lettable area, including canteen
- A unit of size 200 sqm will have an allocation of approx. 60 amps (3-Phase)

Provisions
• Fibre-optic ready
• Fire sprinkler at Block 5008/5014
• Heat and smoke detector at all other blocks

Amenities
• Canteen
• Food centre in close proximity
