1. FOUNDATION
Reinforced concrete raft foundation system to Structural Engineer design
2. SUPER-STRUCTURE
Reinforced concrete structure system to Structural Engineer design
3. WALLS
External
- Reinforced concrete wall and/or Common clay brick and/or steel mesh fence and/or precast panel wall
Internal
- Common clay brick and/or Dry partition boards and/or precast panel wall
4. ROOF
Flat roof: Reinforced concrete flat roof with appropriate waterproofing system
5. CEILING
Ceiling Height
- Refer to Ceiling Height Schedule for details
Living, Dining, Kitchen, Master Bedroom, Junior Master Bedroom, Bedrooms, Foyer, Utility and Household Shelter
- Cement and Sand Plaster and/or Skim Coat Plaster to underside of Slab Soffit /Beam and/or Fibrous Gypsum Plasterboard and/or Moisture Resistant Ceiling Boards
Master Bath, Junior Master Bath and Baths
- Moisture resistant ceiling boards
6. FINISHES
Wall (Unit)
Living, Dining, Master Bedroom, Junior Master Bedroom, Bedrooms, Foyer, Utility and Household Shelter
- Cement and sand plaster and/or Skim coat plaster with emulsion paint.
Master Bath, Junior Master Bath and Bath
- Ceramic tiles and/or Homogeneous tiles laid up to exposed ceiling height.
Kitchen
- Ceramic tiles and/or Tempered glass and/or Cement and sand plaster finished with emulsion paint
Floor (Unit)
Living, Dining, Kitchen
- Marble tiles and/or Homogeneous tiles and/or Ceramic tiles with similar skirting
Master Bedroom, Junior Master Bedroom and Bedrooms
- Timber Parquet and/or Timber strip flooring and/or Homogenous tiles with similar skirting
Master Bath, Junior Master Bath and Bath
- Homogeneous tiles and/or Ceramic tiles and/or mosaic tiles
Foyer, PES and Utility
- Homogeneous Tiles and/or Ceramic Tiles
Staircase
- Timber Parquet and/or Timber Strip Flooring and/or Homogeneous Tiles to Treads & Risers
Private Swimming Pool
- Mosaic Tiles and/or Homogeneous Tiles and/or Ceramic Tiles
Roof Terrace/ Pool Deck
- Homogeneous Tiles and/or Ceramic Tiles
A/C Ledge
- Ceramic and Sand Screed finish
Household Shelter
- Homogeneous Tiles and/or Ceramic Tiles
Wall (Common Area)
External
Staircases
- Cement and Sand Plaster and/or Skim Coat with Emulsion paint finish
External Wall
- Cement and Sand Plaster and/or Skim Coat with Emulsion paint finish
Floor (Common Area)
Staircases
- Homogenous Tiles and/or Ceramic Tiles and/or Cement and Sand Screed
Swimming Pool
- Mosaic Tiles and/or Homogeneous Tiles and/or Ceramic Tiles
Driveway and Car park
- Tarmac and/or Reinforced Concrete and/or Stamp Concrete and/or Homogeneous Tiles
7. WINDOWS
uPVC and/or Powder Coated Aluminum Framed with approximate 6mm thick Tinted/ Clear/ Frosted Glass to be provided to Living and Dining, Master Bedroom, Junior Master Bedroom, Bedrooms, Master Bath, Junior Master Bath, Baths, Kitchen
Note: All Windows are either Side-Hung, Top-Hung, Sliding, Fixed, Louvered or any Combination of the mentioned)
8. DOORS
a) 1st Storey Entrance Door
- Timber Decorative Door
b) Basement Doors
- Approved Fire-Rated Timber Door
c) Master Bedroom /Bedrooms
- Timber Decorative Door
d) Master Bath/Junior Master Bath/Bath
- Timber Decorative Door/PVC and/or Aluminum Bi-Fold Door/or Timber Bi-Fold Door/Glass Door
e) Household Shelter
- PSB Approved Blast Door
f) Ironmongery
- Quality locksets and hinges
9. RAILINGS
Stainless steel and/ or Glass and/or Galvanized mild steel in paint finish
10. SANITARY WARES AND FITTINGS
a) For Units 63/63A/63J
i. Master Bath
- 1 Wash basin
- 1 Wash basin mixer
- 1 Pedestal Water Closet
- 1 Shower mixer with hand and/or rain shower
- 1 Long Bath with shower mixer and hand shower
- 1 Paper Holder
ii. Junior Master Bath
- 1 Wash basin
- 1 Wash basin mixer
- 1 Pedestal Water Closet
- 1 Shower mixer with hand shower
- 1 Paper Holder
iii. Bath, Bath 3 & 4
- 1 Wash basin
- 1 Wash basin mixer
- 1 Pedestal Water Closet
- 1 Shower mixer with hand shower
- 1 Paper Holder
b) For Units 63B/63C/63D/63E/63F/63G/63H
i. Master Bathroom
- 2 Wash basin
- 2 Wash basin mixer
- 1 Pedestal Water Closet
- 1 Shower mixer with hand and/or rain shower
- 1 Long Bath with shower mixer and hand shower
- 1 Paper Holder
ii. Junior Master Bath
- 1 Wash basin
- 1 Wash basin mixer
- 1 Pedestal Water Closet
- 1 Shower mixer with hand shower
- 1 Paper Holder
iii. Bath, Bath 3 & 4
- 1 Wash basin
- 1 Wash basin mixer
- 1 Pedestal Water Closet
- 1 Shower mixer with hand shower
- 1 Paper Holder
(Note: The type and colour of the sanitary wares and fittings and other accessories (if any) are subject to Architect’s selection and discretion.)
11. ELECTRICAL INSTALLATION
All electrical wiring below suspended ceiling within the units shall generally be in concealed conduits where possible. Where there is a suspended ceiling, the electrical wiring above suspended ceiling shall be in exposed conduits/trays/trunkings.
Refer to Electrical schedule for details
12. TV/CABLE SERVICES/FM/TELEPHONE POINTS
Refer to Electrical schedule for details
13. LIGHTNING PROTECTION SYSTEM
Lightning protection system shall be provided in accordance with Singapore Standard SS.555.2010
14. PAINTING
a. External walls - Emulsion paint
b. Internal walls - Emulsion paint
15. WATERPROOFING
Waterproofing to reinforced concrete flat roof, master bath, junior master bath, common baths, balcony, roof terrace, swimming pool/ pool deck/Common walk way/ AC Ledge and other appropriate areas
16. DRIVEWAY & CARPARK
a. Driveway - Reinforced concrete finished with homogeneous tiles and/or cement and sand screed
b. Carpark - Reinforced concrete finished with homogeneous tiles and/or cement and sand screed
17. RECREATIONAL FACILITIES
a) Swimming pool (Common) – Approximately 12m(Length) x 3m (Wide) x 0.9m (Depth)
b) Pool deck
c) Swimming pool (Private)
(i) Unit 63 – Approximately 4.695m (Length) x 2.44m (Wide) x 0.9m (Depth)
(ii) Unit 63A – Approximately 4.8m (Length) x 2.285m (Wide) x 0.9m (Depth)
(iii) Unit 63B to 63H – Approximately 4.8m (Length) x 2.9m (Wide) x 0.9m (Depth)
(iv) Unit 63J – Approximately 4.74m (Length) x 2.8m (Wide) x 0.9m (Depth)
18. ADDITIONAL ITEMS
a) Kitchen Cabinets
- Built-in high and low kitchen cabinets complete with solid surface worktop, single bowl with mixer, electric cooker hob, cooker hood and oven.
b) Solar Water Heater
- Hot water supply to kitchen and bathrooms
c) Air-conditioning -
i) Ceiling cassette air conditioning system to Living/Dining,
ii) Wall mounted Multi-split air conditioning system to master bedroom, junior master bedroom, Bedrooms and Utility Room
d) Intercom System
- Audio intercom to individual units at basement, 1st, 2nd & 3rd storey
e) Main Auto Gate System
- Auto swing gate for vehicular access with wireless remote control
f) Card Access Control
- For pedestrian access from side gate only
g) Private Home Lift
- 1 no. of private home lift
h) Private Swimming Pool

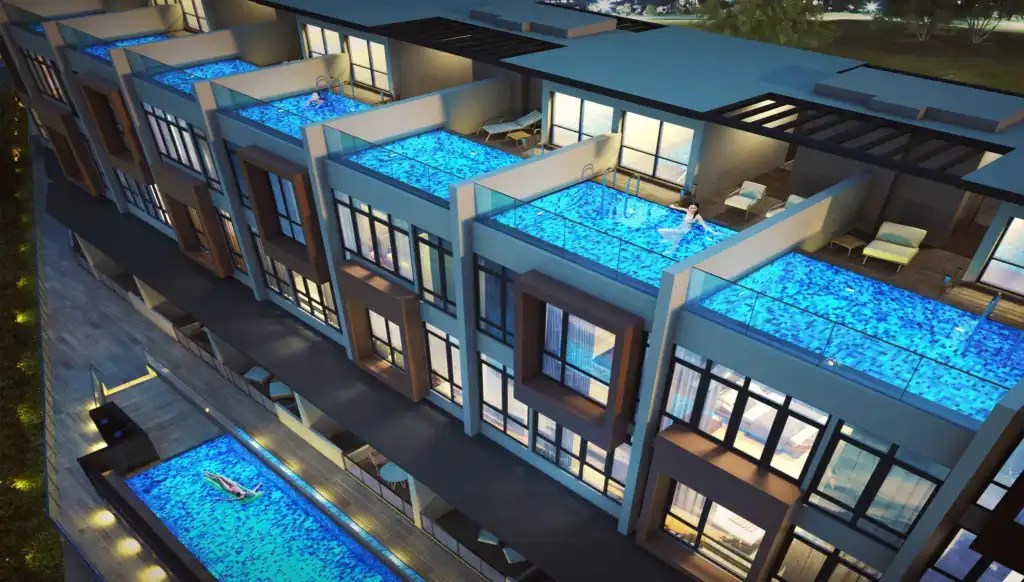

- Private swimming pool at unit roof terrace
i) Transfer Water Tank & Pump System
- Transfer water tank & pump system at unit basement
Notes to Specifications
A. Marble/ Granite
Marble/Granite are natural stone materials containing veins with tonality differences. There will be colour and markings caused by their complex mineral composition and incorporated impurities. While such materials can be pre-selected before installation this non-conformity in the marble/granite as well as non-uniformity between pieces cannot be totally avoided. Granite tiles are pre-polished before laying and care has been taken for their installation. However, granite, being a much harder material than marble, cannot be re-polished after installation Hence, some differences may be felt at the joints. Subject to clause 14.3, the tonality' and pattern of the marble, limestone or granite selected and installed shall be subject to availability.
B. Timber strips
Timber Strips/Parquet are natural materials containing veins and tonal differences. Thus, it is not possible to achieve total consistency of colour and grain in their selection and installation. Timber strips are also subject to thermal expansion and contraction beyond the control of the builder and the Vendor. Natural timber that is used outdoors will become bleached due to sunlight and rain. Thus, the cycle of maintenance on staining will need to be increased as required. Notwithstanding this note, the Vendor shall remain fully responsible for the performance of its obligations under clause 9 and clause 17.
C. Air-conditioning system
To ensure good working condition of the air-conditioning system, the system has to be maintained and cleaned on a regular basis by the Purchaser. This includes the cleaning of filters, clearing of condensate pipes and charging of gas. The Purchaser is advised to engage his own contractor to service the air-conditioning system regularly.
D. Television and/or Internet Access
The Purchaser is liable to pay annual fee, subscription fee and such other fees to the television and/or internet service providers or any other relevant party' or any relevant authorities. The Vendor is not responsible to make arrangements with any of the said parties for the service connection for their respective channels and/or internet access.
E. Materials, Fittings, Equipment, Finishes, Installations and Appliances
Subject to clause 14.3, the brand, colour and model as specified for all materials, fittings, equipment, finishes, installations and appliances to be supplied shall be provided subject to the Architect's selection and market availability.
F. Layout/Location of Fan Coil Units, Electrical Points, Television Points, Telecommunication Points, Audio Intercom System, Door Swing Positions and Plaster Ceiling Boards
Layout/Location of fan coil units, electrical points, television points, telecommunication points, audio intercom system, door swing positions and plaster ceiling boards are subject to the Architect's final decision and design.
G. Warranties
Where warranties are given by the manufacturers and/or contractors and/or suppliers of any of the equipment and/or appliances installed by the Vendor at the Property, the Vendor will assign to the Purchaser such warranties at the time when vacant possession of the Property is delivered to the Purchaser. Notwithstanding this assignment, the Vendor shall remain fully responsible for the performance of its obligations under clause 9 and clause 17.
H. False Ceiling
The false ceiling space provision allows for the optimal function and installation of M&E services. Access panels are allocated for ease of maintenance access to concealed M&E equipment for regular cleaning purposes. Where removal of equipment is needed, ceiling works will be required. Location of false ceiling is subject to the Architect's sole discretion and final design.
I. Glass
Glass is manufactured material that is not 100% pure. Invisible nickel sulphide impurities may cause spontaneous glass breakage, which may occur in all glass by all manufacturers. The Purchaser is recommended to take up home insurance covering glass breakage to cover this possible event Notwithstanding this note, the Vendor shall remain fully responsible for the performance of its obligations under clause 9 and clause 17.
J. Mechanical Ventilation System
Mechanical ventilation fans and ductings are provided to toilets which are not naturally ventilated. To ensure good working condition of the mechanical ventilation system, the mechanical ventilation system for the exhaust system within internal toilets (where applicable) is to be maintained by the Purchaser on a regular basis.
K. Wall
All wall finishes shall be terminated at false ceiling level. There will be no tiles works behind kitchen cabinets/long bath/vanity cabinet/mirror.
L. Cable Services
The Vendor shall endeavor to procure a service provider for cable television and/or internet services (the "cable Services") to provide the necessary cabling or connection from its network to the Unit/Building and/or the Housing Project (or any part or parts thereof), so as to enable the Unit/Building and/or the Housing Project to receive the Cable Services. In the event, despite reasonable efforts being made by the Vendor, the Vendor is unable to procure any service provider to provide the said cabling or connection thereby resulting in there being no Cable Services available in the Unit/Building and/or the Housing Project, the Vendor shall not be liable to the Purchaser for any compensation or for any damages, costs, fees, expenses or losses whatsoever, or howsoever incurred, by virtue of the Purchaser being unable to obtain the Cable Services in the Unit/Building and/or the Housing Project.
M. Private Home Lift
The Purchaser is liable to maintain the lift within the unit on a regular basis by engage a maintenance firm from the open market to ensure that the lift is in good working condition and comply to the relevant authorities requirement by renewing the license annually at their own cost.
N. Private Swimming Pool Skimmer System
The Purchaser is liable to maintain and clean the swimming pool skimmer system within the unit on a regular basis by engage a maintenance firm from the open market to ensure good working condition of the system at their own cost.
O. Water Transfer Tank & Pumping System
The Purchaser is liable to maintain and cleaned the water transfer tank and pump within the unit on a regular basis by engage a maintenance firm from the open market to ensure the system in good working condition at their own cost.
